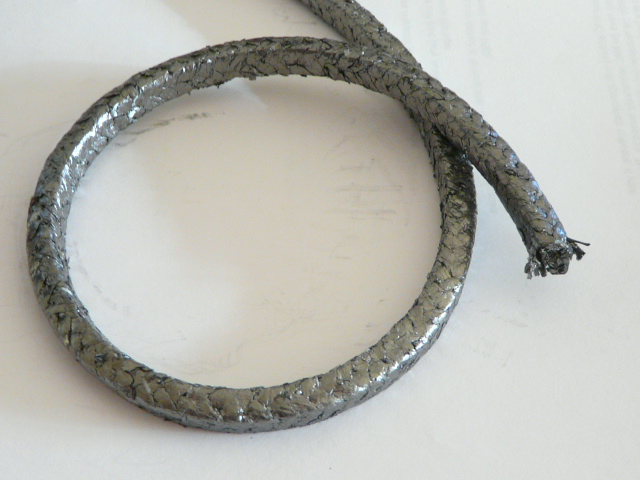

Square Braided Flexible Graphite Packing
Braided from high purity graphite yarns, this packing is designed to be virtually leak free. The packing is self-lubricating, operates with extremely low friction and provides excellent heat dispersion and sealability. It is designed to operate in all pH ranges (0-14 pH), up to pressures of 475 psi. and temperature of 1150 degrees Fahrenheit. Excellent heat transfer and chemical resistance. Typically used for high temperature pump or valve applications. Made in the USA.
|
Construction: |
Plait Braid |
|
Temperature Rating: |
850º F
455ºC Air |
|
1200 ºF
649 ºC
Steam |
|
|
6000 ºF
3315 ºC
Non-Oxidizing Atmosphere |
|
|
pH Rating: |
0 – 14 |
|
Shaft Speed Rating: |
4000 FPM / 20 MPS |
|
Pressure Rating: |
3000 PSI / 207 BAR Valve
500 PSI / 34
BAR Pump |
| Image | Packing Size/Description | Manufacturer | Available | Quantity | Price |
 |
1/8" Square Braided Flexible Graphite | Phoenix | In stock | 8.95/Ft | |
|
|
3/16" Square Braided Flexible Graphite | Phoenix | In stock | 9.95/Ft | |
|
|
1/4" Square Braided Flexible Graphite | Phoenix | In stock | 11.95/Ft | |
|
|
5/16" Square Braided Flexible Graphite | Phoenix | In stock | 14.95/Ft | |
